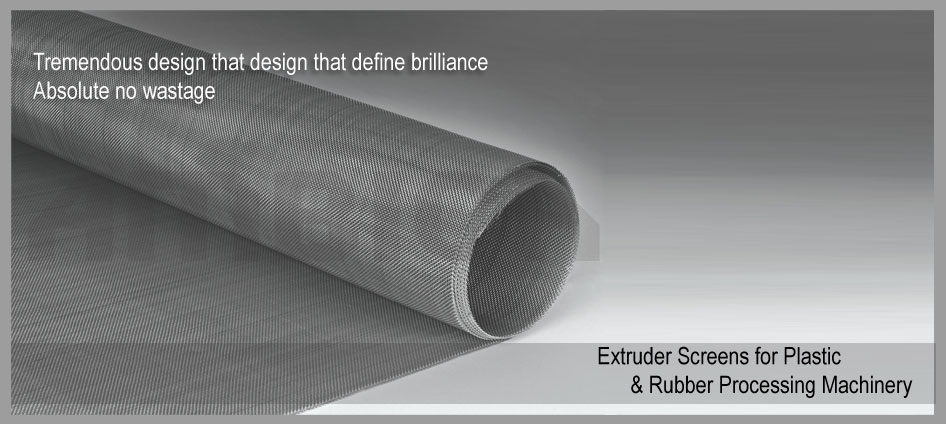

Wire Mesh - Stainless steel Wire Mesh & Woven Wire Cloth

Ambica Group specializes in manufacturing and supplying of high quality 304 L (Low Carbon – high 8% Nickel) Stainless steel wire mesh & wire cloth product, which is cleaned by ultrasonic process with heavy wire diameter, eventually exported to 50 countries and clear more than 5000 customer all over world. "Manufacturing, supplying and export of 304L stainless steel wire mesh screen, woven wire cloth, mesh wire cloth, mesh woven, plain square weave from 4 mesh to 500 mesh up to 2 microns

Ambica is proud to have provided wire mesh and wire cloth product ranging from 4 mesh to 500 mesh and up to 2 microns. This wire mesh is manufactured in India, on original imported German wire weaving machines. The quality is in accordance with international quality standard for wire mesh ISO 9044.

Ambica also offers both weaves in wire mesh, plain – Dutch weave & Twilled – Dutch weave. Specially used in BOPP film plant, woven sacks, PET & non woven fabric plant.


  PLAIN SQUARE WEAVE:

Plain Square Weave, the most common weave, with the same diameter warp and shute wires woven in a simple over and under pattern. It produces screens with the same mesh count in both directions. Mesh woven in this pattern has the maximum stability The full range of specification from 4 mesh to 500 mesh and up to 2 microns.
wire mesh


Product Application
Cement
Chemicals
Flour Mills
Polyester Fibers
Petroleum products
Ceramics
Plastic
Rubber
Pharmaceuticals
Air & Space Technique
Computer Industry
High Pressure Hydraulics
Automotive
Mining
Paper
Aluminium
Wood Working
Sugar industries
Nuclear Technology
Environmental Protection & other industries



Product Specifications
STANDARD EXTRUDER SCREEN SPECIFICATION
WIRE MESH
WIRE DIA .MM
APERTURE SIZE MM
OPEN AREA %
4 X 4 1.219 5.131 MM 65.3
5 X 5 0.914 4.166 MM 67.2
6 X 6 0.914 3.319 MM 61.5
8 X 8 0.711 2.464 MM 60.2
10 X 10 0.711 1.829 MM 51.8
12 X 12 0.559 1.558 MM 54.1
14 X 14 0.457 1.357 MM 55.9
16 X 16 0.457 1.131 MM 50.7
20 X 20 0.559 0.711 MM 31.4
20 X 20 0.457 0.813 MM 41.0
24 X 24 0.376 0.682 MM 41.4
30 X 30 0.376 0.531 MM 34.2
30 X 30 0.310 0.536 MM 40.0
40 X 40 0.274 0.361 MM 32.3
40 X 40 0.234 0.401 MM 39.9
50 X 50 0.193 0.335 MM 43.6
60 X 60 0.193 0.230 MM 29.8
60 X 60 0.152 0.271 MM 41.2
80 X 80 0.122 0.196 MM 37.9
100 X 100 0.102 0.152 MM 36.0
120 X 120 0.091 0.120 MM 31.8
150 X 150 0.071 0.088 MM 29.6
200 X 200 0.051 0.076 MM 36.0
250 X 250 0.041 0.061 MM 36.0
300 X 300 0.041 0.043 MM 26.5
325 X 325 0.035 0.043 MM 30.0
400 X 400 0.030 0.033 MM 27.0
500 X 500 0.025 0.026 MM 26.0
